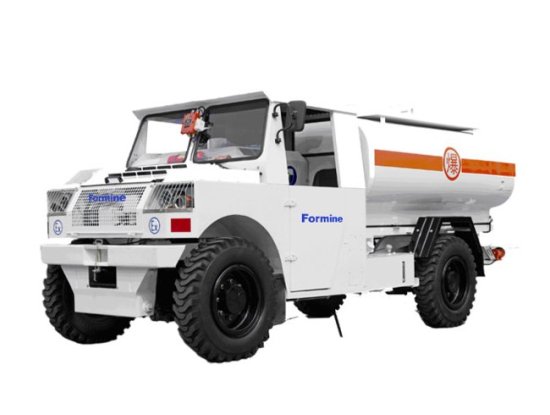

| Model | FMY3 | FMY5 |
| Tank volume（KG) | 3000L | 5000L |
| Power（kw） | Perkins 1104D-E44T 74.5 kW / 2,200 rpm | Perkins 1104D-E44T 74.5 kW / 2,200 rpm |
| Machine weight（kg） | 6000kg | 6,800 kg |
| Speed（km/h） | In first gear 10 km/h In second gear 25km/h | First gear 10 km/h Second gear 15km/h Third gear 25km/h |
| Max thrust (kN) | 51.7kN | 51.7kN |
| Min turning radius inside(mm) | 4400mm | 4400mm |
| Min turning radius outer(mm) | 7200mm | 7400mm |
| torque converter | DANA T2000 | DANA T2000 |
| Main bridge | DANA212/112 | DANA212/112 |
| Brake system | Spring braking hydraulic release | Spring braking hydraulic release |
| Dimensions：Length(mm)*Width(mm)*Height(mm) | 4810mm×2060mm×2200mm | 5750mm×2060mm×2300mm |
| Product Features | Spring suspension on four wheels, cylinder damping and shock absorption | Spring suspension on four wheels, cylinder damping and shock absorption |
