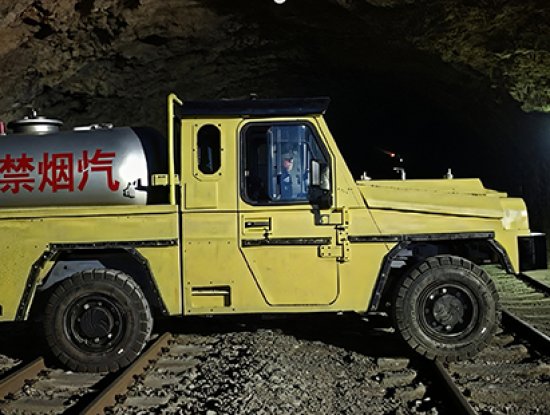

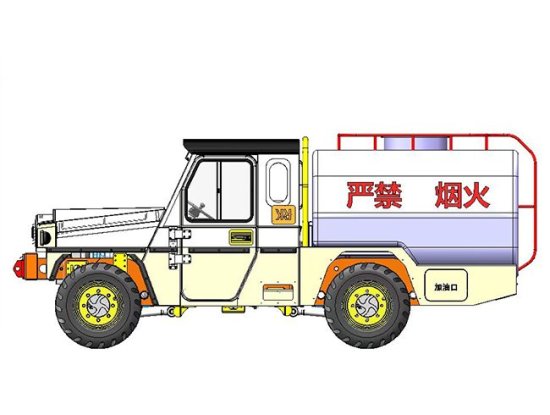

FMY-2 This is a special vehicle for transporting oil, used in underground mines. The main configuration is the world-famous brand, full-time four-wheel drive chassis, a combination of h-springs and dampening hydraulic cylinders, the comfort is very good; It is widely used in large domestic mines; The specification is described below;
Equipment dimensions | |
length | 4595 mm |
width | 2050mm |
height | 2100 mm |
Wheelbase | 2550 mm |
Road safety | 254 mm |
Effective volume of the box (L) | 2000-2500 |
radius of curvature | internal ：3040 mm ；external： 5750 mm |
Equipment parameters | |
Number of passengers | Front and second pilot |
Mass of equipment without load | 4200g |
Maximum traction effort | 70kN |
Nominal load | 2500kg |
Lifting capacity | Maximum 35% |
Engine | |
Engine | Nissan (Dongfeng) ZD30 (Китайско-японский совместный завод) |
nominal power | 110 kW / 2900 rpm |
emission standards | Euro-III |
emissions of exhaust gases | Catalytic conversion + muffler |
intake system | Integrated primary filtration, air filtration, dry filtration, oil and water separator; |
engine protection | High water temperature and low oil pressure |
generator | 24 V, 120 A |
Starting engine | 24 V, 4.0 kW |
Fuel system | Coarse filtration + Fine filtration |
Fuel capacity (L) | 68L With low fuel level signal function |
Привод | |
Stepless controlled hydraulic pump, hydraulic motor reducer. | |
propeller; main propeller pump | LindeHMF-75CC; LindeHPV-75CC (made in Germany) |
speed | Low gear and high gear can be changed, low gear speed: 0-20 km/h; High speed: up to 33 km/h |
Front drive axle | DANA 212, turn（Italy dana） |
rear drive axle | DANA 112, differential lock（Italy dana） |
Suspension system; | The frame of the vehicle is a rigid structure consisting of stable longitudinal beams and transverse traverses with suspended bridges. The body |
Model of the tire | 8.25-20（Optional equipment） |
